miren's BIAB kettle

Post #1 made 14 years ago
by miren
This is my version on Nik's "ultimate BIAB vessel"
as you can see it has interior chiller, PID controller and volume gauge

also I have made a 50 micron filter.
That way I have increased kettle's efficiency since I can filter kettle's trub
Last edited by miren on 17 Oct 2011, 18:31, edited 5 times in total.

Post #2 made 14 years ago
by PistolPatch
You electric guys will have to start a competition :P. Seeing some impressive work here lately. Top job miren.

Does the interior chiller stay inside the kettle for the whole brew? Looks like it is pretty permanent to me.

:salute:
PP
If you have found the above or anything else of value on BIABrewer.info, consider supporting us by getting some BIPs!
    • SVA Brewer With Over 100 Brews From Australia

Post #3 made 14 years ago
by redlegger
Bling Bling!
"I like beer. On occasion, I will even drink beer to celebrate a major event such as the fall of Communism or the fact that the refrigerator is still working.” – Dave Berry

Post #4 made 14 years ago
by nik
PistolPatch wrote:You electric guys will have to start a competition :P. Seeing some impressive work here lately. Top job miren.

Does the interior chiller stay inside the kettle for the whole brew? Looks like it is pretty permanent to me.

:salute:
PP
Yes the chiller stays in all the time at Mirens version which is somehow full automated .
@PistolPatch Miren is responsible for the Greek all in one Calculator .I believe you can contact him to excange thoughts and maybe beta testing of the new version of the Calculator.
Last edited by nik on 17 Oct 2011, 19:56, edited 5 times in total.
    • SVA Brewer With Over 100 Brews From Greece

Post #5 made 14 years ago
by joshua
Good Day, Miren, as some say in the States.....SWEEET!
Honest Officer, I swear to Drunk, I am Not God.
    • SVA Brewer With Over 100 Brews From United States of America

Post #6 made 14 years ago
by thughes
Wow, very nice! I love the built in chiller.

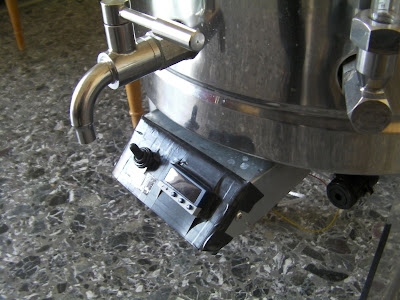

Do you have any concerns/problems with the control panel being that close (under) the drain spigot?
WWBBD?
    • SVA Brewer With Over 100 Brews From United States of America

Post #7 made 14 years ago
by miren
Thank you all for the answers.
@thughes....you are right. This is the weak spot of the construction. I'm trying to move it in another place because at my last brew, wort fell on the controller and caused short circuit

Post #8 made 14 years ago
by PistolPatch
I think this is the first built-in chiller I've seen miren. Has nik got one of these as well? I would have thought it would make it hard to pull your bag out and also be hard to clean the chiller/kettle but these two things don't seem to to be causing you any problems. I'm guessing you are using the bag for your hops too?

Good on you for doing the Greek all in one calculator ;). If you want to beta test the new one, send Pat a PM with your email address.

Good stuff ;)
PP
If you have found the above or anything else of value on BIABrewer.info, consider supporting us by getting some BIPs!
    • SVA Brewer With Over 100 Brews From Australia

Post #9 made 14 years ago
by miren
PistolPatch wrote:....... I would have thought it would make it hard to pull your bag out and also be hard to clean the chiller/kettle but these two things don't seem to to be causing you any problems. I'm guessing you are using the bag for your hops too?....
There is no problem in pulling out the bag but you guessed right in the cleaning part of your sentence. Particular when I'm using hop leafs. So I overcome the problem by using pellets.
Last edited by miren on 19 Oct 2011, 15:23, edited 5 times in total.

Post #10 made 14 years ago
by nik
I am using this vessel as a simple boiler with the benefit of its excellent thermal insulation and for chilling I use a common copper immersion chiller which I remove when the chilling is complete (pretty basic staff).
    • SVA Brewer With Over 100 Brews From Greece

Post #11 made 14 years ago
by PistolPatch
How about using your bag for your hops miren? Just a quick rinse after you mash out and it should be good to go for your hops. I've got the copper coil like nik but even the pellet hop gunge tends to build up after a few brews :angry:.
If you have found the above or anything else of value on BIABrewer.info, consider supporting us by getting some BIPs!
    • SVA Brewer With Over 100 Brews From Australia

Post #12 made 14 years ago
by arzaman
Hi Miren

very nice assembly...just a question...where do you source the heating element?
did you have to bend by yourself or it was already shaped that way?

What about adding a circulating pump :-)?

ciao
Davide
    • BME Brewer With Over 50 Brews From Italy

Post #13 made 14 years ago
by miren
PistolPatch wrote:How about using your bag for your hops miren? Just a quick rinse after you mash out and it should be good to go for your hops. I've got the copper coil like nik but even the pellet hop gunge tends to build up after a few brews :angry:.
I use small coton bags for the hops.
This spiral ss tube needs a lot of cleaning, you are right, it is not so practical concerning the cleaning effort but my desing principle is all in one if possible
arzaman wrote:Hi Miren

very nice assembly...just a question...where do you source the heating element?
did you have to bend by yourself or it was already shaped that way?

What about adding a circulating pump :-)?

ciao
Davide
Hello Davide
I gave a sketch and the heating element was bended by the small industry were I have ordered it.
I'm thinking on adding a pump but I have issues to solve.
1. Price
2. Temperature endurance
3. Size
4. Availability in Greek market
5. Head and flow rate

I think that a dishwasher pump will do the job
Last edited by miren on 21 Oct 2011, 03:01, edited 5 times in total.

Post #14 made 14 years ago
by stux
I'm sure you know about march pumps...
Fermenting: -
Cubed: -
Stirplate: -
On Tap: NS Summer Ale III (WY1272), Landlord III (WY1469), Fighter's 70/- II (WY1272), Roast Porter (WY1028), Cider, Soda
Next: Munich Helles III

5/7/12

Post #15 made 14 years ago
by PistolPatch
Thanks for answering my questions miren :peace:

nala uses a cheap pump on his kettle here. There's a link to the pump website in post #8. Maybe that will do the trick for you?
Last edited by PistolPatch on 21 Oct 2011, 17:10, edited 5 times in total.
If you have found the above or anything else of value on BIABrewer.info, consider supporting us by getting some BIPs!
    • SVA Brewer With Over 100 Brews From Australia

Post #16 made 14 years ago
by miren
PistolPatch wrote:Thanks for answering my questions miren :peace:

nala uses a cheap pump on his kettle here. There's a link to the pump website in post #8. Maybe that will do the trick for you?
Thank you PP this pump fulfils all my requirements. So this will be my next project :)
Last edited by miren on 21 Oct 2011, 17:29, edited 5 times in total.

Post #17 made 13 years ago
by miren
New age in BIAB method with better efficiency since I use the water that the calculator uses as the amount that grain absorbs as sparge water ;)
Last edited by miren on 03 Jun 2012, 23:50, edited 5 times in total.

Post #18 made 13 years ago
by stux
Wow

How did you make the mesh bucket?
Fermenting: -
Cubed: -
Stirplate: -
On Tap: NS Summer Ale III (WY1272), Landlord III (WY1469), Fighter's 70/- II (WY1272), Roast Porter (WY1028), Cider, Soda
Next: Munich Helles III

5/7/12

Post #19 made 13 years ago
by miren

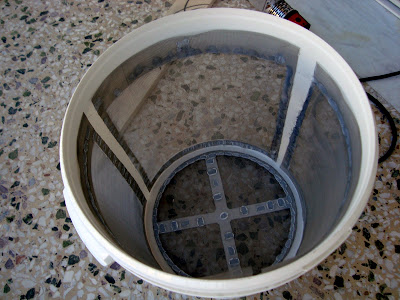

I bought stainless steel net with 0.5 mm holes. I cut a fermentation bucket as you see at the photos and I melt the bucket using a tool that joins PP tubes
Last edited by miren on 04 Jun 2012, 01:08, edited 5 times in total.

Post #21 made 13 years ago
by Aces high
miren wrote:
PistolPatch wrote:Thanks for answering my questions miren :peace:

nala uses a cheap pump on his kettle here. There's a link to the pump website in post #8. Maybe that will do the trick for you?
Thank you PP this pump fulfils all my requirements. So this will be my next project :)
I also use one of those pumps. they are surprisingly good for the price. I run through a herms unit and back into the top of the pot during the mash and also use it to whirlpool before no chilling. It runs fine even at temperatures just below 100 degrees C.
Last edited by Aces high on 04 Jun 2012, 15:35, edited 5 times in total.
